openlsd.network.server.LSDDemuxingIoHandler Class Reference

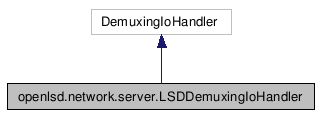

Inheritance diagram for openlsd.network.server.LSDDemuxingIoHandler:

[legend]

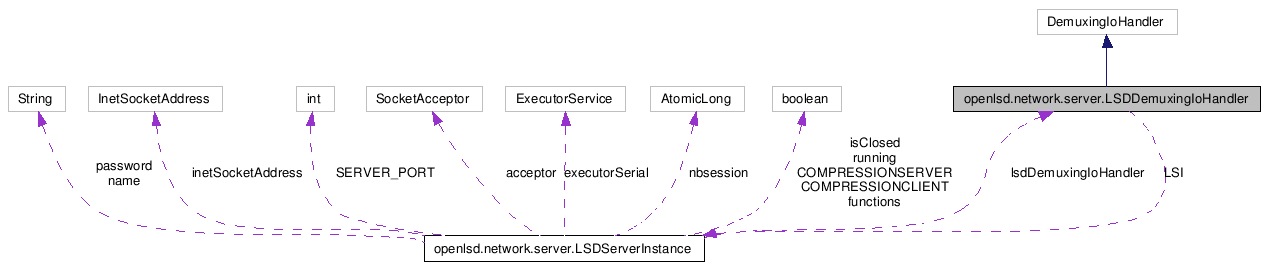

Collaboration diagram for openlsd.network.server.LSDDemuxingIoHandler:

[legend]

List of all members.

Detailed Description

Main Class Handler for Server part

Main info for Status returned by calls to network functions:
Bad Legacy : KOBADREQUEST
Bad Document : KOBADREQUEST if first call or KOSYSTEM if second or next call
For all kind of request : BADREQUEST if a bad request is done (bad command or bad index)

Admin:

KOSYSTEM if error not specified
SHUTDOWNIMMEDIATE | SHUTDOWN | STOP : OK
RESTART | START : CONTINUE
ENABLE | CREATEDIR | WIPEDIR | WIPERECURDIR : KOUNAVAIL if not exist else O

Del:
LEGACY unavailable : KOUNAVAIL
OK if deleted, KOSYSTEM if not deleted, KOBADREQ if MD5 or IDs are KO

Get | GetNAck :
KOUNAVAIL if first block in error (no file)
KOBADREQUEST if first block in error
CONTINUE if there is more block to come
OK if this is the last block

Info:
SIZE : OK if size > 0, or KOUNAVAIL if not available
EXIST : OK if it exist or KOSYSTEM if not exist or KOUNAVAIL if MD5 is wrong
COPY : OK if copy or KOUNAVAIL if not
LIST, LISTMD5, AEXIST, AEXISTMD5 : OK
SESSIONINFO : OK, BADREQUEST if no session are returned (and should be at least 1)

Move:
MOVE | MOVELEG : OK or BADREQUEST

PutFile | Put | PutNAck:
Argument from Client are incorrect : KOBADCLIENT
LEGACY unavailable : KOUNAVAIL
File already exist : BADREQUEST
Put OK : CONTINUE if there is more block to come or OK if this is the last block
Put KO : KOSYSTEM
Put KO but cannot restore to previous state (cannot delete) : KONOPREVIOUS

Author:: Frederic Bregier LGPL


Public Member Functions
void	sessionCreated (IoSession session) throws Exception
void	sessionClosed (IoSession session) throws Exception
void	sessionIdle (IoSession session, IdleStatus arg1) throws Exception
Static Public Member Functions
static void	myExceptionCaught (IoSession session, Throwable arg1)
static void	write (IoSession session, LSDMsgAnswear lma, boolean last)
Protected Member Functions
boolean	isDIHKO ()
Static Protected Member Functions
static void	sessionStop (IoSession session)
static void	clearLSDSession (IoSession session)
static boolean	isSessionStop (IoSession session)
static LSDServerSession	createLSDSession (IoSession session, byte commande, boolean unique, long legacy, long storage, long doc, int rankblock)
static LSDLegacy	getLegacy (IoSession session, LSDMsgAnswear lma, LSDServerSession ls, long lid)
static LSDDocument	getDocumentFromLegacy (IoSession session, LSDMsgAnswear lma, LSDServerSession ls, LSDLegacy legacy, long sid, long did)
static void	waitAllSession (IoAcceptor ioAcceptor)
static void	sessionWaitAllRequest (IoSession session)
static void	DIHSessionWait (LSDDemuxingIoHandler dih)
Protected Attributes
LSDServerInstance	LSI = null
Private Member Functions
boolean	sessionStart (IoSession session)
Static Private Member Functions
static void	cleanCurrentAction (LSDServerSession ls)

Member Function Documentation

boolean openlsd.network.server.LSDDemuxingIoHandler.isDIHKO ( ) [protected]

Returns the status of the associated server (DIH=DemuxingIoHandler)

Returns:: True if the DIH is KO

void openlsd.network.server.LSDDemuxingIoHandler.sessionCreated ( IoSession session ) throws Exception

Check if the session is ok with the status of the server. If not, close the session immediately.

See also:: org.apache.mina.common.IoHandlerAdapter.sessionCreated(org.apache.mina.common.IoSession)

static void openlsd.network.server.LSDDemuxingIoHandler.sessionStop ( IoSession session ) [static, protected]

Stop the session.

Parameters:

session

the session to stop

boolean openlsd.network.server.LSDDemuxingIoHandler.sessionStart ( IoSession session ) [private]

Start the session.

Parameters:

session

the session to enable start

Returns:: True if the session is correctly created, else False and close the current IoSession.

static void openlsd.network.server.LSDDemuxingIoHandler.clearLSDSession ( IoSession session ) [static, protected]

clear the session attribute from IoSession (clear the attribute)

Parameters:

session

the session to clear

static boolean openlsd.network.server.LSDDemuxingIoHandler.isSessionStop ( IoSession session ) [static, protected]

Return the status of the current session

Parameters:

session

the session to test

Returns:: True if not closed, else False

static LSDServerSession openlsd.network.server.LSDDemuxingIoHandler.createLSDSession	(	IoSession	session,
		byte	commande,
		boolean	unique,
		long	legacy,
		long	storage,
		long	doc,
		int	rankblock
	)			`[static, protected]`

Create or retreave the session attribute according to the args.

If rankblock = 1, it creates a new session attribute, clearing the previous one if existing.

If rankblock > 1, it waits that the session attribute is created and get the previous value, without using any value from args, except if status = -1, it returns null. The rankblock is only set if = 1.

Parameters:

	session	the session to get new LSD session
	commande	the command to associate with the session
	unique	Is this session using a unique commande call (closing immediately after)
	legacy	Which legacy to access
	storage	Which storage to access in the legacy
	doc	Which document in the storage
	rankblock	is the rank of the current block (send or receive)

Returns:: the LSDServerSession created or get from previous

void openlsd.network.server.LSDDemuxingIoHandler.sessionClosed ( IoSession session ) throws Exception

Close the session and clear the attribute.

See also:: org.apache.mina.common.IoHandlerAdapter.sessionClosed(org.apache.mina.common.IoSession)

static void openlsd.network.server.LSDDemuxingIoHandler.cleanCurrentAction ( LSDServerSession ls ) [static, private]

Clean the current action corresponding to the ServerSession

Parameters:

ls

void openlsd.network.server.LSDDemuxingIoHandler.sessionIdle	(	IoSession	session,
		IdleStatus	arg1
	)			throws Exception

Close the session and, if there is an attribute, release the lock of the attribute for all blocks.

See also:: org.apache.mina.common.IoHandlerAdapter.sessionIdle(org.apache.mina.common.IoSession, org.apache.mina.common.IdleStatus)

static void openlsd.network.server.LSDDemuxingIoHandler.myExceptionCaught	(	IoSession	session,
		Throwable	arg1
	)			`[static]`

Close the session and, if there is an attribute, release the lock of the attribute for all blocks.

Parameters:

	session
	arg1

See also:: org.apache.mina.common.IoHandlerAdapter.exceptionCaught(org.apache.mina.common.IoSession, java.lang.Throwable)

static void openlsd.network.server.LSDDemuxingIoHandler.write	(	IoSession	session,
		LSDMsgAnswear	lma,
		boolean	last
	)			`[static]`

Function to encapsulate send operation and if this is the last message, finished the session, even closed the session if the profile is one action by session

Parameters:

	session	the session used to write
	lma	the answear object to write
	last	set if this message is the last one (join is implied if true)

static LSDLegacy openlsd.network.server.LSDDemuxingIoHandler.getLegacy	(	IoSession	session,
		LSDMsgAnswear	lma,
		LSDServerSession	ls,
		long	lid
	)			`[static, protected]`

Return the associated Legacy according to lid, or if not found, send an error message using preallocated LSDMsgAnswear and setting the LSDServerSession.

Parameters:

	session	the associated session
	lma	the preallocated answear message
	ls	is the associated session
	lid	is the Legacy id

Returns:: the requested LSDDbLegacy or null if an error occurs

static LSDDocument openlsd.network.server.LSDDemuxingIoHandler.getDocumentFromLegacy	(	IoSession	session,
		LSDMsgAnswear	lma,
		LSDServerSession	ls,
		LSDLegacy	legacy,
		long	sid,
		long	did
	)			`[static, protected]`

Return the associated Document according to Legacy / sid/did, or if not found, send an error message using preallocated LSDMsgAnswear and setting the LSDServerSession.

Parameters:

	session	is the associated session
	lma	the preallocated answear message
	ls	the session object
	legacy	the legacy object
	sid	the Storage id
	did	the Document id

Returns:: the requested LSDDocument or null if an error occurs

static void openlsd.network.server.LSDDemuxingIoHandler.waitAllSession ( IoAcceptor ioAcceptor ) [static, protected]

Wait for one IoAcceptor that all request will end

Parameters:

ioAcceptor

static void openlsd.network.server.LSDDemuxingIoHandler.sessionWaitAllRequest ( IoSession session ) [static, protected]

Wait that all pending requests from the session are done.

Parameters:

session

static void openlsd.network.server.LSDDemuxingIoHandler.DIHSessionWait ( LSDDemuxingIoHandler dih ) [static, protected]

Wait all session associated with one DemuxIoHanler to finished

Parameters:

dih

Member Data Documentation

LSDServerInstance openlsd.network.server.LSDDemuxingIoHandler.LSI = null [protected]

Reference to the corresponding Server Instance

The documentation for this class was generated from the following file:

OpenLSD/Server/openlsd/network/server/LSDDemuxingIoHandler.java
